image armstrong w g_supplement---electric movement_plate 9
Image number: RS.10664
Credit: © The Royal Society
Looking for a special gift? Buy a print of this image.

Electrical discharge



Creator - Organisation

Object type

Library reference





height (print): 275mm
width (print): 380mm



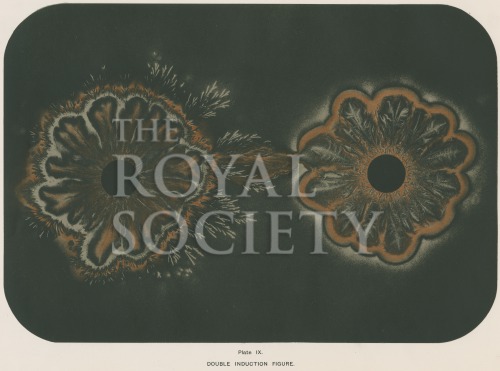

Study of patterns produced by electrical discharges on surfaces revealed by dusting with powdered red lead and sulphur. Sometimes termed ‘Lichtenberg figures’.

These experiments were conducted at Cragside in Northumberland, England, using a Wimshurst machine (electrostatic generator) and two 10-gallon Leiden jars. Current was conveyed to two rod conductors with a spark gap at which coated wires discs or plates were positioned. Lord Armstrong exhibited figures of the type produced at the Royal Society soiree at Burlington House in London on 16 June 1897.

Plate 9 from Supplement to Lord Armstong’s work on electric movement in air and William George Armstrong and Henry Stroud (London, Smith Elder & Co., 1899).

The plate is inscribed below: “Plate IX. DOUBLE INDUCTION FIGURE.”

William George Armstrong, Baron Armstrong (1810-1900) armaments manufacturer and industrialist was elected a Fellow of the Royal Society in 1846.
